₹24,00,000 / Piece (Excluding Taxes)
| Particulars | Details |
| Model | UNICNC3015V |
| Machine structure | Pipe welding machine body |
| Fiber Laser source | MAX 3000W |
| Laser Head | BOCI BLT310(auto focus) / Raytools |
| Transmission system | Dual-drive precise rack and pinion |
| Guide rail | HIWIN X 35 Y 35 |
| Rack&pinion | Taiwan YYC |
| Speed Reducer | YSK |
| Servo motor | YSK 3.0 |
| Water chiller | S&A CWFL-3000 |
| Control System | Shanghai Cypcut 2000E |
| Proportional valve | Japan SMC |
| Auxiliary Parts | Exhaust Fan dust and particle extraction |
| Particulars | Details |
| Electronics | France Schneider |
| Computer | Industrial Computer |
| Working area (L*W) | 3000×1500mm |
| Auto Lubrication | Yes |
| Remote Controller | Yes |
| X/Y axis Repeated Position Precision | ±0.04 mm |
| Machine gross weight | 1650 KG |
| Voltage | THREE phase 380V 50Hz |
Comes in a wide range of power outputs (1kw to 6kw) to handle different material thicknesses and cutting speed.
Advanced Features also availble:

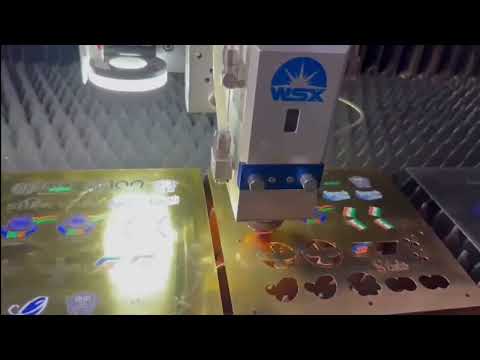

CCD camera : combines high-precision fiber laser technology with visual positioning systems for automated pattern recognition and accurate cutting or marking.
The CCD camera captures images of the work area, identifies reference points or patterns, and guides the laser to process materials with exceptional accuracy
